LED Internally illuminated Bollards
Strong and durable slimline bollard.
Illuminated sign operates on 24vDC but bollard is supplied based on project incoming voltage.
Both ranges available in mild steel (painted black or grey) or stainless steel (painted black or grey or brushed)
Both available with a choice of fixing method: flange feet, flange plate, in ground box or NAL sockets.
Both ranges available in non-illuminated versions
|RANGE||/||GRAPHIC SIZE (mm)||COLOR||/||INCOMING VOLTAGE||FIXING DETAIL||/||TSRGD CODE|

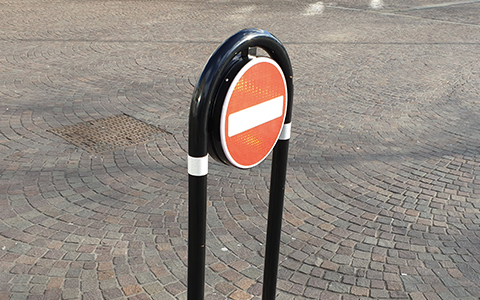

|BBOL (Borough)||/||300||G (Grey Mild Steel)||/||12V (12vDC)||FF (Flange Feet [Round])||/||***|

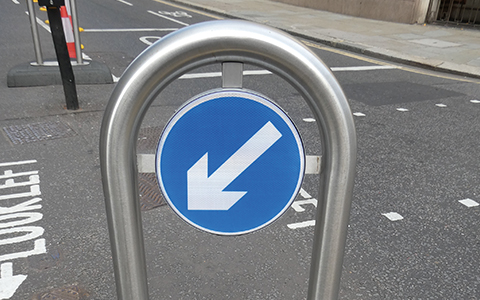

|CBOL (City)||B (Black Mild Steel)||24V (24vDC)||FP (Flange Plate)|
|SS (Brushed SS)||240V (240v)||NAL (NAL socket*)|
|SSB (Black SS)||IG (in ground box)|
|SSG (Grey SS)|
Example Code: BBOL/300G/240FF/606
Optional Extra’s (Add bold code as suffix to above):
BTB - back to back version with illuminated sign on both sides
NIL - Non-illuminated
*Bollard supplied with longer legs (NAL sockets not supplied)
