CITADEL45

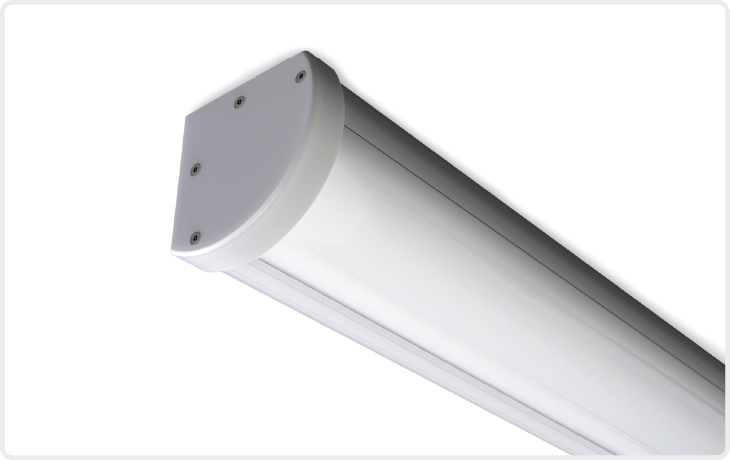

Angled curved profile LED luminaire


PRODUCT CODE

CIT45/2/2250
CIT45/2/2450
CIT45/2/2900
CIT45/4/4500
CIT45/4/4900
CIT45/4/5800
LUMENS

2250
2450
2900
4500
4900
5800
LENGTH

600mm
600mm
600mm
1200mm
1200mm
1200mm
LOAD

18W
20.5W
25W
35W
39W
48W

Angled LED fitting with a slim-line curved profile capable of continuous mounting (cable runs can be housed within angled back body).

Body in extruded aluminium, mounted on zinc coated steel angled bracket.
Machined aluminium end caps secured by anti-tamper fixings.
3mm opal polycarbonate control lens designed to achieve superior optical performance.
2250, 2450 & 2900lm are supplied set to ordered level but version for on-site switchable output is available – add suffix "ADJ".
4500, 4900 & 5800lm are supplied set to ordered level but version for on-site switchable output is available – add suffix "ADJ".

CCT: 4000K
Finish: Painted Smooth White
IP: 65
IK: 18

Other colours and technical modifications available.
